Pneumatic valves

Pneumatic valves

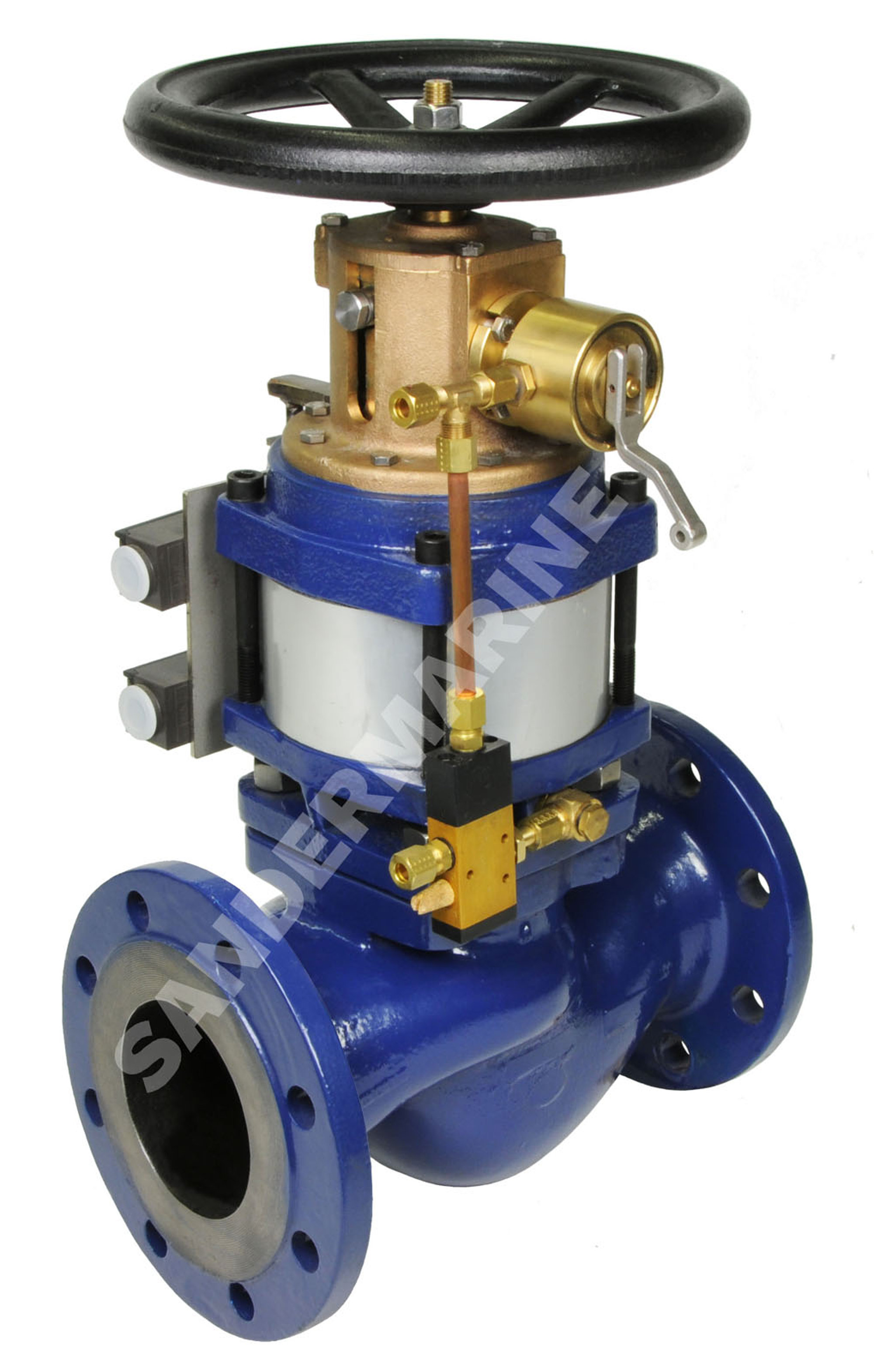

Our pneumatic valves with their space saving design are solidly constructed with short height and easy emergency hand operation.

The valves are available in:
• nodular cast iron, cast steel and
   bronze
• from DN 32 up to DN 200
• working pressure from
   3 bar uo tp 6 bar
• control air from
   7 bar up to 10 bar
• temperature range from
  -10°C up to +80°C
• straight or angle type
• with emergency hand operation
• with 2 limit switches
• single or as valve chest
• with flanges acc. to DIN, ANSI or JIS
• suitable for fresh water, oil and
   seawater

Our pneumatic valves are available generally equipped with two limit switches. They are single acting as spring closed, double acting and spring opened.

You can order our spring closed pneumatic valves in the design:
• as bilge valve with automatically change over device from hand
   operation into pneumatic service from the control desk.
   Especially for passenger ships as required by Lloyd`s Register
• as stop valve with fixed disc
• as combination of a quick closing and a pneumatic valve

You can order our double acting pneumatic valves in the design:
• as stop valve with fixed disc
• as screw-down and check valve with loose disc

You are searching for furthermore designs, different materials, diameters, working pressures or temperature ranges ?

Please ask us !  We are pleased to help you.

Contact

Sales
Phone  +49 (421) 48603-0
Fax.    +49 (421) 48603-89

email



Contactform

PDF download

... also available:

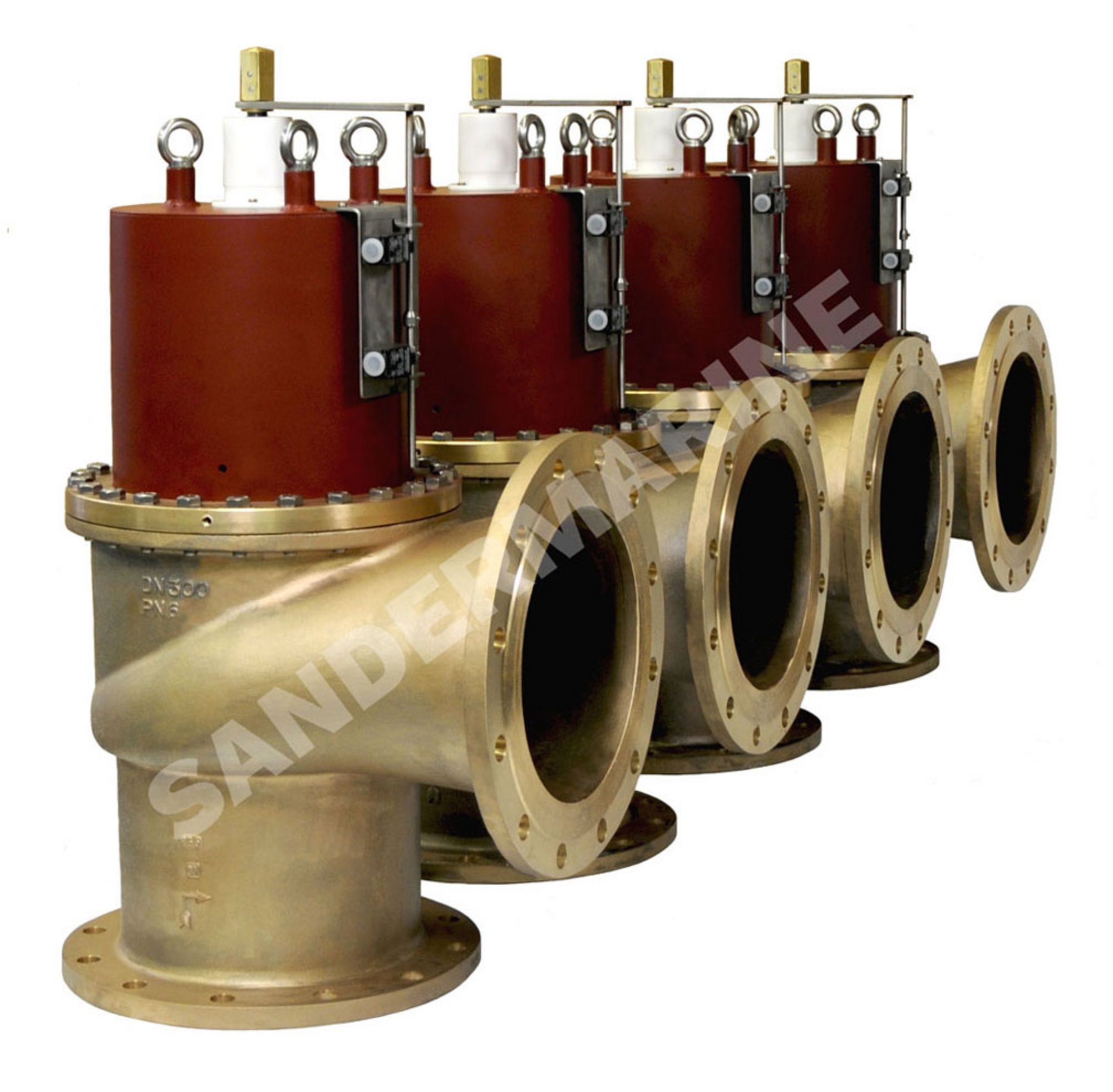

Pneumatic valve PN 6 angle type DN 300
open by spring
with emergency hand operation
with 2 limit switches
gunmetal / stainless steel

special designs are possible - ask us !
