DIN 87101 and type HNA

Sandermarine offers a wide range of different types of valves and offers different types of storm valves.

Storm valves are back balanced and soft-seated. They are used in sanitary discharge pipelines on ships and are suitable for temperatures up to 80°C.

Our storm valves are approved from the international classification societies.

Our storm valves are also available in following designs:
• in straight type | DIN 87101
• in angle type | Type HNA
• without fixing device Form A
• with fixing device Form B
• nominal diamieters DN 50/80 up to DN 200/250
• with flanges acc. to DIN, optional drilled acc. to ANSI or JIS
• in gunmetal
• in cast steel or nodular cast iron with flap material gunmetal or AlBz

You are searching for furthermore designs, different materials, diameters, working pressures or temperature ranges ?

Please ask us !  We are pleased to help you.

Contact

Sales
Phone  +49 (421) 48603-0
Fax.    +49 (421) 48603-89

email



Contactform

PDF download

... also available:

Storm valve type HNA
with fixing device
material: gunmetal

further designs are possible .... please ask us !

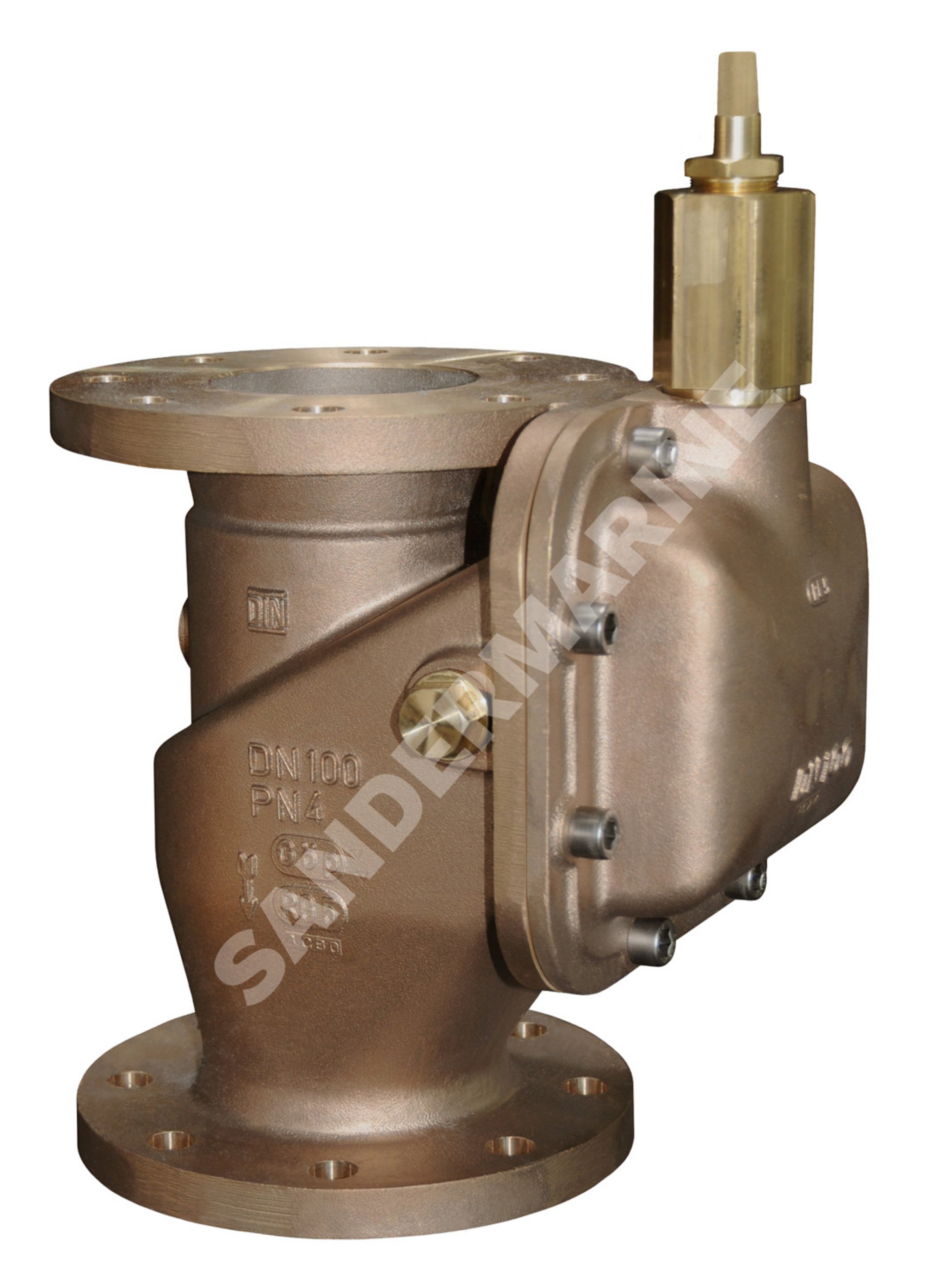

Storm valve DN 100
DIN 87101 Form B PN 1
with fixing device
Flanges PN10
Material: Rg 5

further designs are possible .... please ask us !
