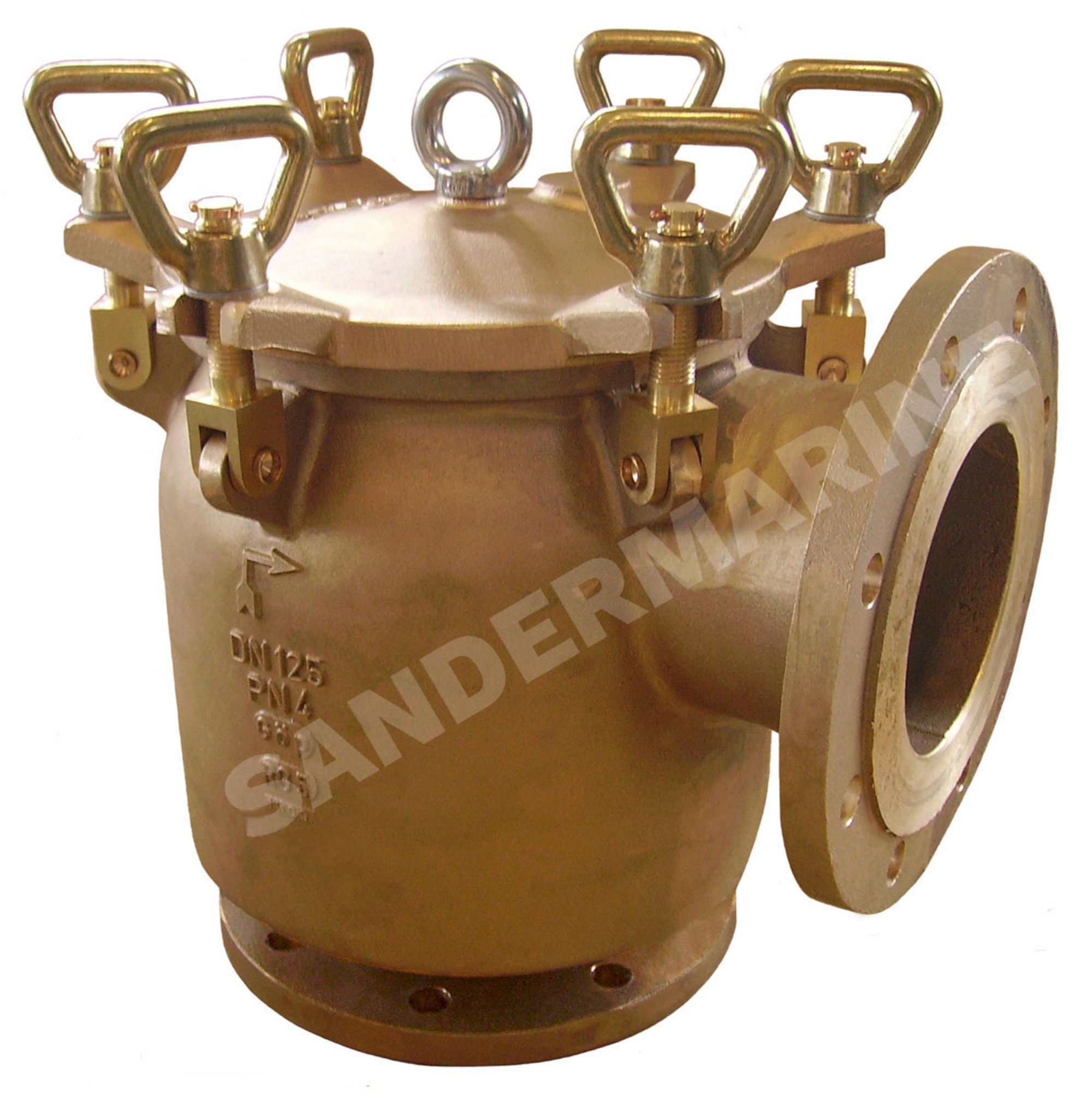

New in our product range is our mud-box acc. to DIN 87151 made of gunmetal.
Our mud-boxes are available for use in suction pipes for cooling water and bilge systems.
You can order our mud boxes in following designs:
• straight or angle type
• dimensions from DN 40 up to DN 150
• with nonvolatile hinged bolts
• with filter material stainless steel
• with nominal pressure PN 4 /
from DN 150 PN 2,5
On request you can get our mud-boxes also in following designs:
• material cast iron, nodular cast iron, cast steel
• other filter materials
• flange connection acc. to ANSI, JIS
• with vent cock

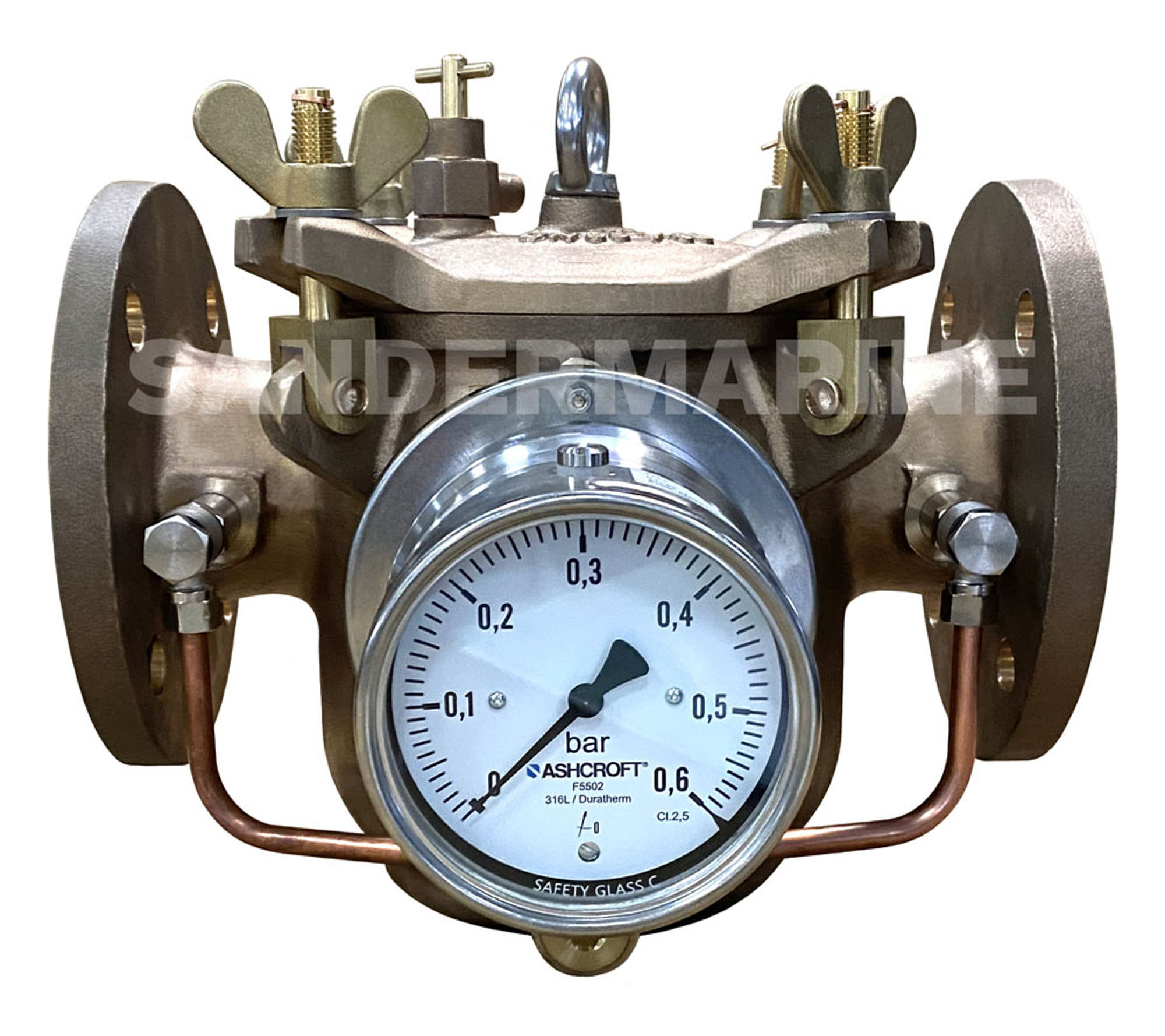

• with differential pressure gauge
